Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable

Zhengzhou Yifang Cable Co., Ltd

Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable

Brand Name : Yifang

Model Number : R2V / RO2V

Place of Origin : China

MOQ : 200meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300000/month

Delivery Time : 2~3 weeks

Packaging Details : Wooden drum, steel-wooden drum

Standard : NF C 32-321, IEC 60502

Rated voltage : 0.6/1KV

Conductor material : Aluminum

Insulation material : XLPE

Sheath material : PVC

Flexibilité du câble : Rigide

Température maximale sur l'âme : 90 °C

Température maximale sur l'âme en court circuit : 250 °C

Contact Now

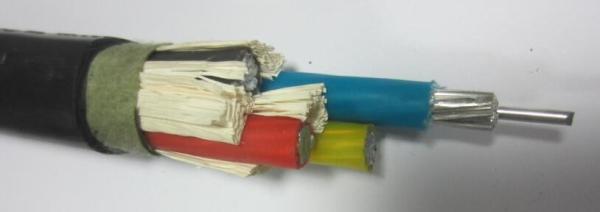

Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable

U-1000 AR2V / ARO2V cable

Application:U-1000 R2V cables are intended for common use in industry and are particularly recommended for distribution systems low voltage energy. The use of multicore cables is adapted to remote control and telecontrol installations.

In case of high ambient temperature, apply the correction coefficients.

Standards : NF C 32-321, IEC 60502,etc

Rated Voltage Uo/U (Um) : 0.6/1 KV

Conductor: Aluminum

Conductor shape : Stranded circular or shaped (sector) conductor

Cores number: 1C, 2C, 3C,4C,5C....multicore.

Insulation: XLPE (Cross-Linked Polyethylene)

Sheath: PVC

Sheath Color: Black or Colors as your request.

Range of Nominal cross section: 1.5 mm2 ~ 630 mm2

Usage characteristics:

Max. conductor temperature in service: 90°C

Short-circuit max. conductor temperature: 250°C

Operating temperature, range : -25 .. 60°C

Flame retardant cables can be available by the special request.

Water blocking cables can be available by the special request.

Certificate: ISO ,CE , SGS, SONCAP , BV , ETC.

Dear friends,we can design and produce power cable with International and national standards according to your request

Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable

Multi Core Low Voltage Power Cable U-1000 AR2V / ARO2V Xlpe Aluminium Cable
